iFi Audio iCAN Phantom - Reference-Class Headphone Amplifier, Pre-amp & Energiser for Electrostatic Headphones

No reviews

£3,749.00 inc. VAT(£3,124.17 ex. VAT)

The ultimate analogue headphone amp from world-leading audio manufacturer iFi Audio
Also performs as high-end stereo preamplier to connect to amp and speakers
Pure Wave PRO fully differential balanced circuit design delivers ultra-low distortion
Two discrete input stages, switch between solid state and vacuum tubes in real time
Adjustable gain and load impedance plus iEMatch output attenuation
Energiser technology with six voltage settings for electrostatic headphones
Capacitive battery power supply eliminates mains-borne noise from the audio signal
XSpace and XBass analogue processing modes for headphones and speakers
Exemplary build quality, comprehensive connectivity and colour display

Manufacturer warranty: 12 months

iFi Audio iCAN Phantom

New reference-class analogue headphone amp with incorporated electrostatic energiser with advanced user interface and network-connected control system. iFi’s new reference-class analogue headphone amp, the iCAN Phantom, takes the Pro iCAN, refines and enhances every element of its circuitry to further elevate its performance, incorporates technology from the Pro iESL - previously a separate component – for electrostatic headphones, and adds a new, advanced user interface and network-connected control system.
Exemplary build quality, sophisticated technology, an unrivalled specification and remarkable versatility, expertly engineered to drive every headphone type to its full sonic potential. From ultra-sensitive IEMs, to the finest dynamic driver and planar magnetic headphones, to the most power-hungry electrostatic designs, the iCAN Phantom delivers a truly exceptional headphone experience – exquisitely tailored to the requirements of the listener.
The iCAN Phantom also performs as a high-end preamplifier – to feed a power amp and speakers (or powered speakers) – enabling headphone and speaker listening to be combined in a single high-performance audio system.
Vanish into the music.

THE ROLLS-ROYCE OF FLAGSHIPS

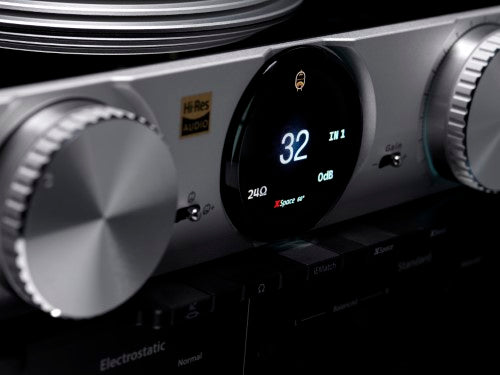

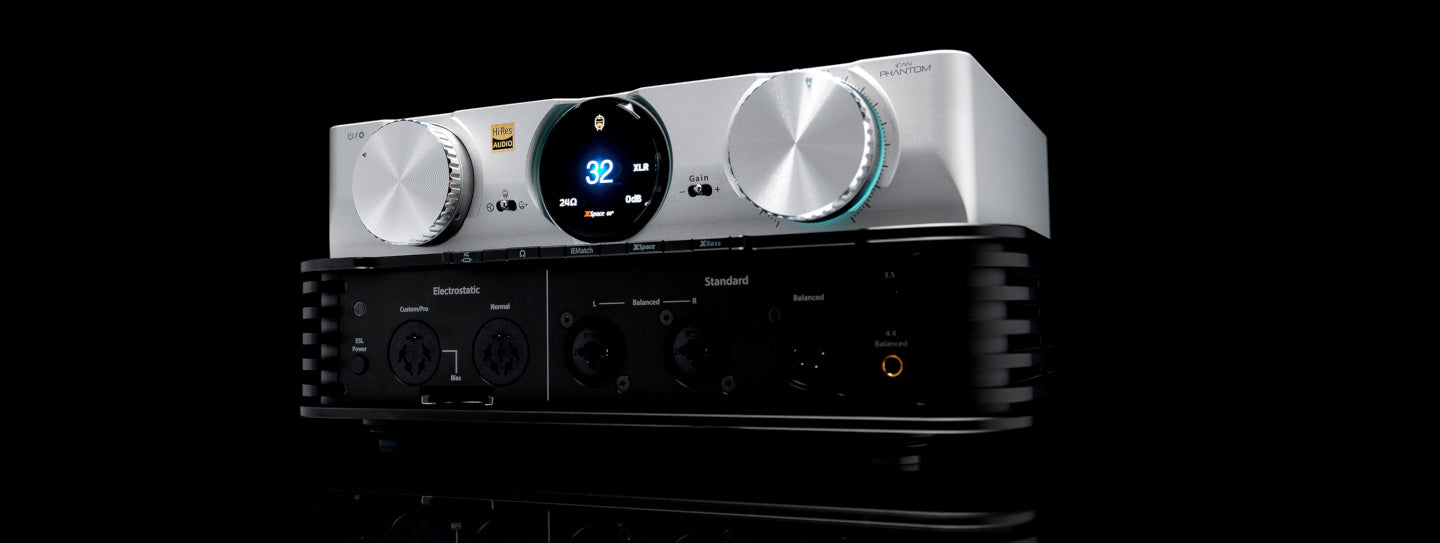

The iCAN Phantom’s design gives the appearance of two units but in fact it is a single, dual-level device, the full depth of which is fully utilised by its multi-layer circuit design. Its enclosure is sturdily constructed from aluminium, with the bottom layer sporting cable connections front and back, and the top layer offering tactile controls and a colourful OLED display. The iCAN Phantom also comes with an attractive, easy to use aluminium, high quality, remote control.

A TALE OF TWO INPUT STAGES
iCAN Phantom sports two input stages – one valve/tube-based, the other solid state – enabling the user to switch between the two in real time. It is like having three amplifiers in one, each with a different sonic presentation. Solid-state offers pace and immediacy. Tube mode adds fluidity and a free-breathing dynamic quality. Tube+ accentuates the sonic influence of the valves, delivering a spellbinding romantic warmth that may suit, for example, acoustic and vocal musical styles.

ELECTROSTATICALLY GOOD
Most headphones create sound by using dynamic (or moving coil) drivers to move air. A smaller number use planar magnetic diaphragms, which are different in form and operation, but still use magnetic fields to cause motion. At the high end of the headphone scene there is another, rare but fabulous sounding driver type – electrostatic headphones. Electrostatic drivers need an separate energiser. The iCAN Phantom incorporates our original standalone iESL energiser technology with regular amplifier technology to make a single amplifier that can handle every headphone type.

BIAS VOLTAGE SIMPLIFIED

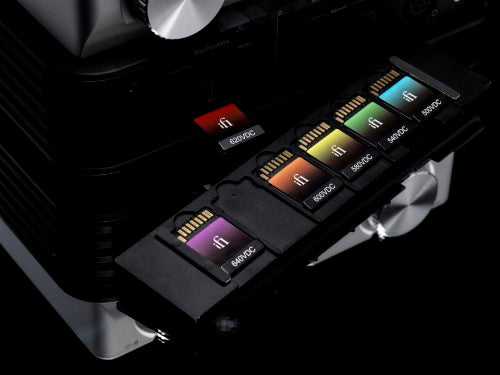

The iCAN Phantom has a series of data cards that specify different bias voltages (these are supplied with the amp). Simply select the card that matches the headphone’s specification and pop it in the card slot – there are cards for 500V, 540V 580V, 600V, 620V and 640V each with a handy guide on the back showing which headphone brand is compatible with that voltage.

EVERY CONNECTION COVERED
iCAN Phantom supplies a wide array of balanced and single-ended connection options. The headphone outputs are at the front, with the source inputs and preamp outputs at the rear. See the source output connections in the technical specifications below.

IFI NEXIS – NETWORK CONNECTED CONTROL
The iCAN Phantom is the first product to incorporate iFi Nexis, a module which combines with an app to provide a comprehensive, scalable network-connected control system. The features that Nexis offers will grow over time. At launch, the Nexis app enables your Android or iOS device to act as a ‘super remote control’ for the iCAN Phantom, providing access to additional features not accessible via the amp’s fascia or standard remote control.
Features

The ultimate analogue headphone amp from world-leading audio manufacturer iFi Audio
Also performs as high-end stereo preamplier to connect to amp and speakers
Pure Wave PRO fully differential balanced circuit design delivers ultra-low distortion
Two discrete input stages, switch between solid state and vacuum tubes in real time
Adjustable gain and load impedance plus iEMatch output attenuation
Energiser technology with six voltage settings for electrostatic headphones
Capacitive battery power supply eliminates mains-borne noise from the audio signal
XSpace and XBass analogue processing modes for headphones and speakers
Exemplary build quality, comprehensive connectivity and colour display
Package Includes

iFi Audio iCAN Phantom
RCA Cable
iPower Elite
Infrared Remote Control
Quick start card
Instruction card
Technical Specifications
Gain: 0dB, 9dB and 18dB user-selectable
Frequency Response: 0.5Hz to 500kHz(-3dB)
THD + N: Solid-State: Balanced 0.0015% / UnBAL 0.007%
THD + N Tube: Balanced 0.002% / UnBAL 0.006%
THD + N Tube+: Balanced 0.012% / UnBAL 0.2%
SNR: Balanced >145dB(A) / UnBAL >130dB(A)
Output Power: Balanced >15,000mW (@ 16Ω) / UnBAL >5,760mW (@ 16Ω)
Output Voltage: Balanced >27.0V (@ 600Ω) / UnBAL >14.0V (@600Ω)
ESL Output Voltage: Custom/Pro 640V RMS max. / Normal 320V RMS max.
Input voltage: DC 12V/4A or 15V/3A (Phantom iCAN)
Input voltage: AC 85 - 265V, 50/60Hz (iPower Elite)
Power consumption: <27W idle, 75W max
Source inputs: 1x balanced XLR (L/R), 3x RCA (L/R)
Headphone outputs: 1x 3-pin balanced XLR (L/R), 1x 4-pin balanced XLR, 1x 4.4mm balanced, 1x 6.3mm (positive phase), 1x 6.3mm (inverted phase) and 1x 3.5mm (includes S-Balanced technology to cut distortion by 50 per cent)
Electrostatic headphone outputs: 1x 5-pin normal bias, 1x 5-pin custom bias
Preamplifier outputs: 1x balanced XLR (L/R), 1x RCA (L/R)
Dimensions: 256 × 185 × 120 mm (10.1" x 7.3" x 4.7")
Net weight: 4.2 kg (9.3 Ibs)
